Description
UHD Signage Display with LG webOS Platform and Advanced Security
High Resolution Display offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
* Based on third party testing, the case top and back cover of the product are classified Class A1 (case top) and A2 (back cover) under EN13501-1, Class 1 under BS476 Part 7.
Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Design for Space Utilization

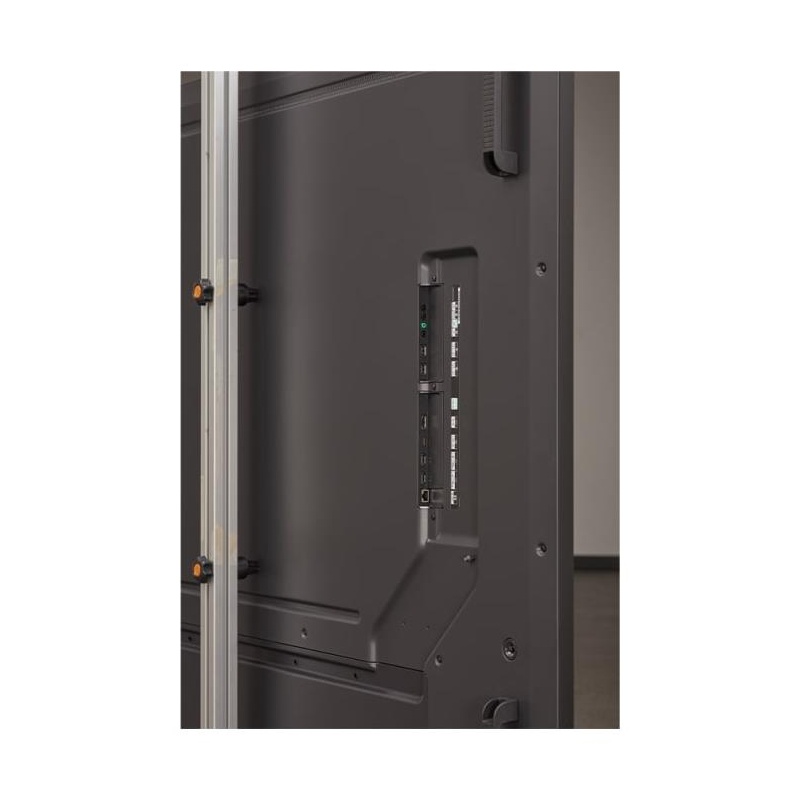

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.
Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.
Enhanced Security Features
The UH5N-M provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Model 75UH5N-M | 75" | Resolution 3840x2160 | Form factor 16:9 | Refresh rate 60Hz | Brightness 500 | Contrast 1200:1 | Dynamic contrast (DCR) 1000000:1 | Response time 8 ms | Horizontal 178 degrees | Vertical 178 degrees | Speakers | PSU Inbuilt | Operation time hours/day 24/7 | Colour Black
Specification
| Introduction Year | 2024 |
| Model | 75UH5N-M |
| Model Name | 75UH5N-M |
| Operation (hours/days) | 24/7 |
| Diagonal (") | 75" |
| Native Resolution | 3840 x 2160 |
| Screen type | 16:9 |
| Screen Technology | LED |
| Screen LED Backlight | Edge-LED |
| Panel | ADS |
| Screen Refresh Rate | 60 Hz |
| Operation System | webOS |
| Internal memory | 16 GB |
| Response Time | 8 ms |
| High Definition (HD) | 4K Ultra HD |
| Contrast | 1200:1 |
| DVI | no |
| DVI-D | 1 |
| Brightness (cd/m2) | 500 cd/m² |
| Vertical View Angle | 178 ° |
| Horisontal View Angle | 178 ° |
| RS232 port | 2 |
| Temperature range | 0 ... 40 °C |
| Dynamic contrast | 1000000:1 |
| Colours | 1.07 mlrd |
| Fits with VESA | 600 x 400 mm |
| VESA Mounting | yes |
| VESA 600 x 400 | yes |
| Speakers | yes |
| Sound (W) | 20W |
| Audio Input | 1 |
| Ethernet | yes |
| HDMI ports | 3 |
| Bluetooth | yes |
| Powered by | Seesmine toiteplokk |
| USB 2.0 | 2 |
| HDMI | 3 |
| Audio output | 1 |
| RJ45 | 1 |
| Wifi | yes |
| Colour | Black |
| Weight net (kg) | 35.7 kg |
| Weight with package (kg) | 44 kg |
| Laius | 1679.5 mm |
| Product height | 958.7 mm |
| Product depth | 29.7 mm |
| Dimensions without stand (W x H x D) | 167.95 x 95.87 x 2.97 cm |
| Package dimensions (W x H x D) cm | 182 x 111.5 x 20 cm |
| Warranty | 3 years |
