Description
High-Performance with webOS 6.0
webOS 6.0, upgraded in SoC and web engine, is available on SM5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
Various Sensor Connection
LG webOS smart signage platform helps to easily provide additional solutions by supporting simple connections with external sensors* such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.
Mobile & Web Monitoring
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of the SM5J series displays in different locations in real-time. It is available on internet connected devices, allowing you to flexibly and rapidly respond to emergency situations.
Compatible with AV Control System
The SM5J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Real-Time LG ConnectedCare Service
Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.
Real-Time Promotion
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Sharing
Content Mirroring among devices is available on a Wi-Fi network.
Wireless Access Point
The SM5J series operates as a virtual router which can be an wireless access point for mobile devices.

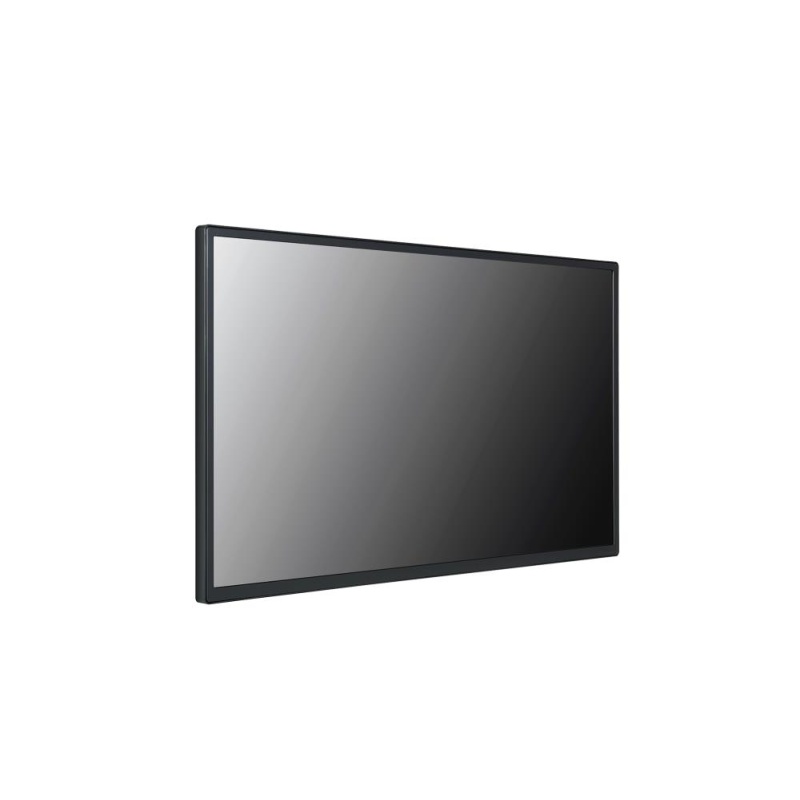

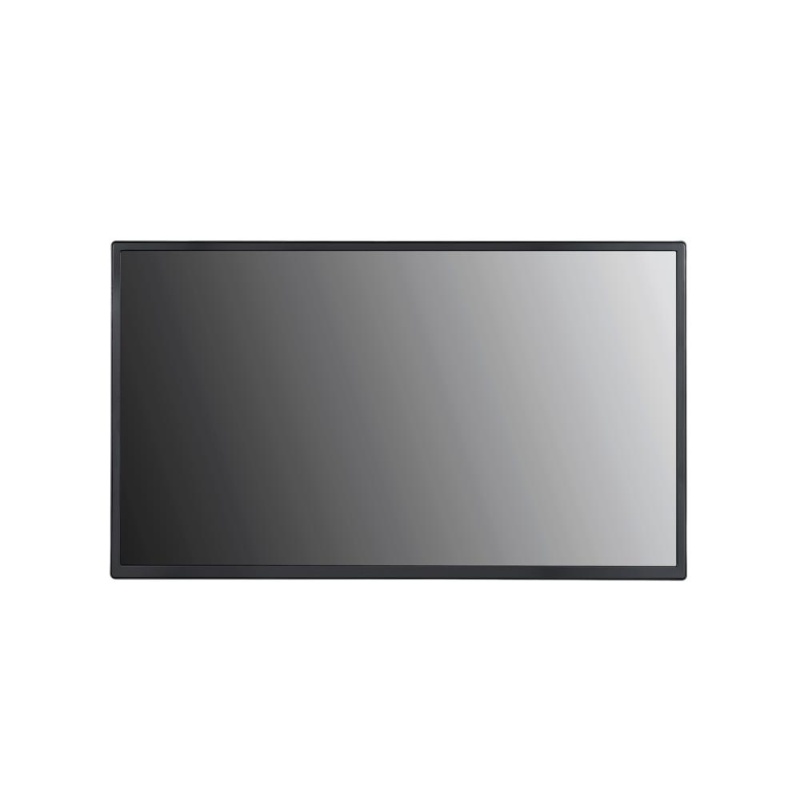

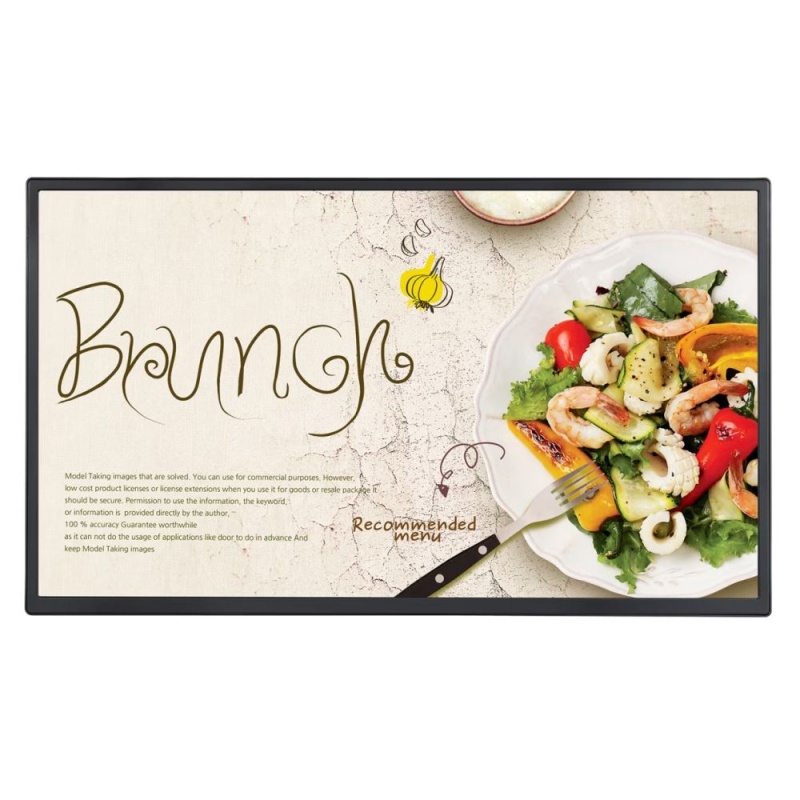

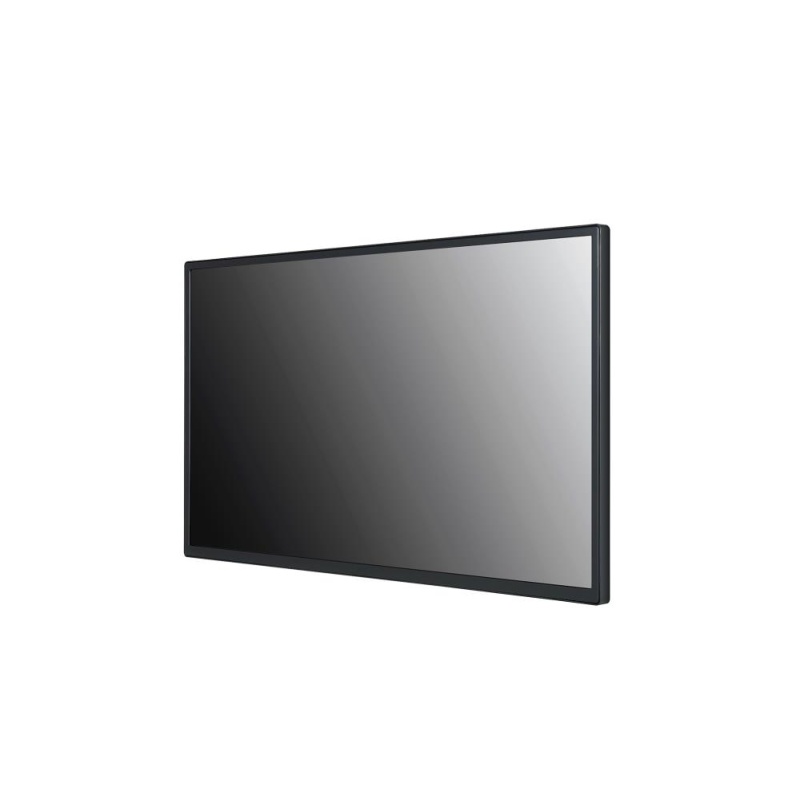

Digital signage LFD | Model 32SM5J-B | 32" | Panel IPS | Resolution 1920x1080 | Form factor 16:9 | Brightness 400 | Contrast 1100:1 | Dynamic contrast (DCR) 1000000:1 | Response time 10 ms | Horizontal 178 degrees | Vertical 178 degrees | Speakers | PSU Inbuilt | Operation time hours/day 24/7
Specification
| Model | 32SM5J-B |
| Model Name | 32SM5J-B |
| Operation (hours/days) | 24/7 |
| Diagonal (") | 32 |
| Native Resolution | 1920 x 1080 |
| Screen type | 16:9 |
| Screen Technology | IPS |
| Panel | IPS |
| Response Time | 10 ms |
| High Definition (HD) | Full HD |
| Contrast | 1100:1 |
| Brightness (cd/m2) | 400 cd/m² |
| Vertical View Angle | 178 ° |
| Horisontal View Angle | 178 ° |
| RS232 port | 1 |
| Temperature range | 0 ... 40 °C |
| Dynamic contrast | 1000000:1 |
| Colours | 16.7 milj. |
| Fits with VESA | 200 x 200 mm |
| VESA Mounting | yes |
| VESA 200 x 200 | yes |
| Speakers | yes |
| Sound (W) | 20W |
| Ethernet | yes |
| HDMI ports | 3 |
| Powered by | Seesmine toiteplokk |
| USB 2.0 | 1 |
| HDMI | 3 |
| Audio output | 1 |
| RJ45 | 1 |
| Wifi | yes |
| Colour | Black |
| Weight with stand | 6.5 kg |
| Weight net (kg) | 6500 g |
| Weight with package (kg) | 7.4 kg |
| Laius | 729.4 mm |
| Product height | 428.9 mm |
| Product depth | 55.5 mm |
| Dimensions without stand (W x H x D) | 72.94 x 42.89 x 5.55 cm |
| Dimensions with stand (W x H x D) | 72.94 x 48.1 x 15.42 cm |
| Package dimensions (W x H x D) cm | 81 x 51 x 13.2 cm |
| Warranty | 3 years |
